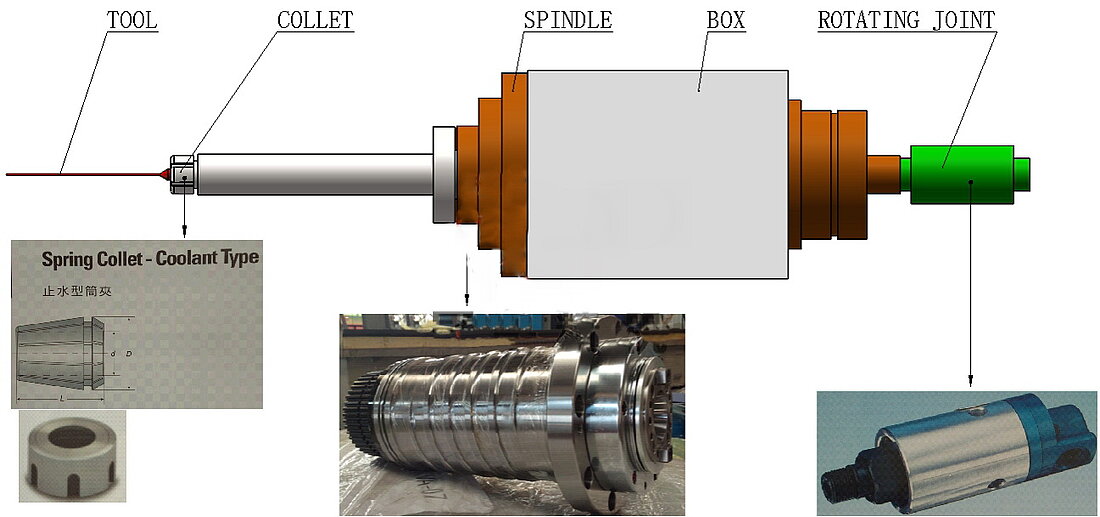

This series is specially designed to meet all the requirements of very small hole drilling from Ø1.4 mm to Ø10 mm. Motorized spindles, high pressure coolant pumps are standard on this series. Many work holding options are also offered on these machines depending on application requirements.
| Parameters | |||
|---|---|---|---|
| Working capacity | Drilling hole diameter range | mm | Φ1.4～Φ10 |
| Drilling hole maximum depth | mm | 500 | |
| Job maximum length | mm | 500 | |
| Main spindle quantity | pcs | 1/2/4 | |
| Main spindle space between | mm | 140 | |
| Machine Characters | Z Axis | ||
| Infeed speed range | mm/min | 5～500 | |
| Rapid speed range | mm/min | 3000 | |
| Infeed motor torque | Nm | 8 | |
| Drill box | Rotating speed range | r/min | 500～6000 |
| Motor power | kW | 3.7 | |
| Coolant system | Maximum pressure | MPa | 15 |
| Maximum flow | L/min | 50 | |
| Filtering accuracy | µm | 5 | |
| Coolant/Oil tank volume | l | 1000 | |
